Spark 安装与部署

blairchen

spark

Publish：Jun 29, 2016

views

Spark

Spark 主要使用 HDFS 充当持久化层，所以完整的安装 Spark 需要先安装 Hadoop.
Spark 是计算框架, 它主要使用 HDFS 充当持久化层。

1. Spark On Linux

安装 JDK (green download install)
配置 SSH 免密码登陆 (可选)
安装 Hadoop (brew install hadoop)
安装 Scala (brew install scala)
安装 Spark (green download install)
启动 Spark 集群

MS=/usr/local/xsoft

### JAVA ###
JAVA_HOME=$MS/jdk/Contents/Home
JAVA_BIN=$JAVA_HOME/bin
PATH=$JAVA_HOME/bin:$PATH
CLASSPATH=.:$JAVA_HOME/jre/lib/rt.jar:$JAVA_HOME/jre/lib/dt.jar:$JAVA_HOME/jre/lib/tools.jar
export JAVA_HOME JAVA_BIN PATH CLASSPATH

export HADOOP_HOME=/usr/local/Cellar/hadoop/3.2.1_1
export PATH=$PATH:$HADOOP_HOME/sbin:$HADOOP_HOME/bin

export SCALA_HOME=/usr/local/Cellar/scala/2.13.3
export PATH=$PATH:$SCALA_HOME/bin

export SPARK_HOME=$MS/spark
export PATH=$PATH:$SPARK_HOME/bin

Spark官网下载

2. 安装 Spark

(1). tar -xzvf spark-3.0.0-bin-hadoop2.7.tgz

(2). cd /usr/local/xsoft/spark-3.0.0-bin-hadoop3.2/

(3). 配置 conf/spark-env.sh
    1) 详细复杂参数配置参见 官网 Configuration
    2) vim conf/spark-env.sh

		#!/usr/bin/env bash

		export SCALA_HOME=/usr/local/Cellar/scala/2.13.3
		export SPARK_HOME=/usr/local/xsoft/spark

		export SPARK_MASTER_IP=localhost
		export MASTER=spark://localhost:7077

		#export IPYTHON=1
		export PYSPARK_PYTHON=/Users/blair/.pyenv/versions/anaconda3/envs/spark/bin/python3
		export PYSPARK_DRIVER_PYTHON="jupyter"
		export PYSPARK_DRIVER_PYTHON_OPTS="notebook"

		#export SPARK_WORKER_MEMORY=2g

		#export SPARK_EXECUTOR_INSTANCES=2
		#export SPARK_EXECUTOR_CORES=1

		#export SPARK_WORKER_MEMORY=2000m
		#export SPARK_EXECUTOR_MEMORY=500m

       #export SPARK_LIBRARY_PATH=${SPARK_HOME}/lib

(4). 配置 conf/slaves (测试可选)
(5). 一般需要 startup ssh server.

3. 启动 Spark

在 Spark 根目录启动 Spark

1 2	./sbin/start-all.sh ./sbin/stop-all.sh

启动后 jps 查看会有 Master 进程存在

➜  spark  jps
11262 Jps
11101 Master
11221 Worker

4. Spark 集群初试

可以通过两种方式运行 Spark 样例 :

以 ./run-example 的方式执行

1
2
3

➜  cd /usr/local/xsoft/spark
➜  spark ./sbin/start-all.sh
➜  spark ./bin/run-example org.apache.spark.examples.SparkPi

以 ./Spark Shell 方式执行

scala> import org.apache.spark._
import org.apache.spark._

scala> object SparkPi {
     |
     |   def main(args: Array[String]) {
     |
     |     val slices = 2
     |     val n = 100000 * slices
     |
     |     val count = sc.parallelize(1 to n, slices).map { i =>
     |
     |       val x = math.random * 2 - 1
     |       val y = math.random * 2 - 1
     |
     |       if (x * x + y * y < 1) 1 else 0
     |
     |     }.reduce(_ + _)
     |
     |     println("Pi is rounghly " + 4.0 * count / n)
     |
     |   }
     | }
defined module SparkPi
scala>

// Spark Shell 已默认将 SparkContext 类初始化为对象 sc, 用户代码可直接使用。
// Spark 自带的交互式的 Shell 程序，方便进行交互式编程。

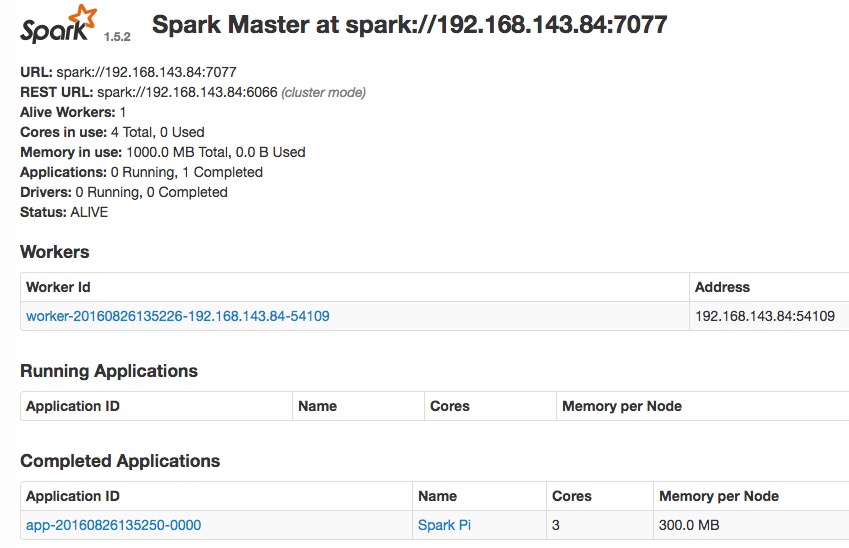

通过 Web UI 查看集群状态
```
  http：//masterIp:8080
```

http://localhost:8080/

5. Quick Start

quick-start : https://spark.apache.org/docs/latest/quick-start.html

./bin/spark-shell

scala> val textFile = sc.textFile("README.md")
# val textFile = sc.textFile("file:///usr/local/xsoft/spark/README.md")

textFile: spark.RDD[String] = spark.MappedRDD@2ee9b6e3
RDDs have actions, which return values, and transformations, which return pointers to new RDDs. Let’s start with a few actions:

scala> textFile.count() // Number of items in this RDD
res0: Long = 126

scala> textFile.first() // First item in this RDD
res1: String = # Apache Spark
